Отоплительные котлы Серии Unmak UKY-3K предназначены для твердых видов топлива как уголь и древесина. Производятся в различных мощностях. Специальная конструкция котла позволяет проделать смягчение без потушения котла. Благодоря своему высокому качеству обеспечивает комфортное отопление и легок в управлении.

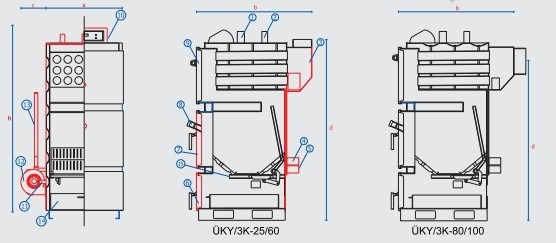

- Boiler Outlet
- Safety Outlet
- Chimney
- Safety Inlet
- Boiler Inlet
- Ash discharge Cover
- Fuel Entry Cover
- Observing Glass
- Flue Pipes Cleaning Cover
- Control Board
- Water Filling / Discharge
- Fan
- Ash Discharge Rod
- Ash Box
| MODEL - SERIES |
ÜKY/3K |
25 |
34 |
45 |
60 |
80 |
100 |
| Fuel Type |
Wood - Coal - Biomass |
| Heat Output |
kw |
29 |
40 |
52 |
70 |
93 |
116 |
| kcal/h |
25.000 |
34.000 |
45.000 |
60.000 |
80.000 |
100.000 |
| Burning Chamber Height |
mm |
175 |
230 |
200 |
| Burning Chamber Width |
mm |
355 |
500 |
585 |
| Burning Chamber Length |
mm |
500 |
430 |
510 |
660 |
850 |
| Burning Chamber Volume |
dm3 |
31,1 |
49,5 |
51,0 |
66,0 |
85,0 |
99,5 |
| Fuel Entry |
250x355 |
265x500 |
265x585 |
| Water Volume |
lt |
75 |
85 |
107 |
138 |
206 |
249 |
| Boiler Weight |
kg |
245 |
280 |
335 |
375 |
470 |
575 |
| Required Draft |
mbar |
0,15-0,20 |
0,20-0,30 |
0,25-0,35 |
0,30-0,40 |
| Min-Max Operating Temperature |
°C |
40-80 |
| Return Water Temperature |
°C |
40 |
| Maksimum Operating Pressure |
bar |
3 |
| Test Pressure |
bar |
5 |
| Width (a) |
mm |
625 |
| Length (b) |
mm |
880 |
800 |
920 |
1080 |
1400 |
1415 |
| Fan Collection Width (c) |
mm |
200 |
250 |
| Chimney Collection Height (d) |
mm |
1230 |
1320 |
1410 |
1220 |
1310 |
| Total Boiler Height (h) |
mm |
1320 |
1400 |
1480 |
1565 |
| Exhaust (Flue) |
mm |
130 |
160 |
180 |
220 |
| Min-Max Flue Temperature |
°C |
170-210 |
| Boiler Inlet-Outlet |
R'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
| Expansion Tank Outlet-Inlet |
R'' |
1'' |
1 1/2'' |
| Filling-Discharge |
R'' |
1 1/2'' |
| Electrical Connection |
V/Hz |
230V - 50 Hz |
*The right to make changes in dimension is reserved.
