Отоплительные котлы Серии Unmak UKY/D3 предназначены для твердых видов топлива как уголь и древесина. Специальная конструкция котла позволяет проделать смягчение без потушения котла. Использование теплообменных слоев вместо труб значительно уменьшает загрязнение котла.

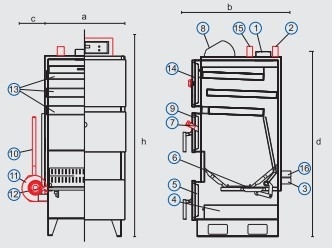

- Chimmey
- Boiler Outlet
- Boiler Inlet
- Ash Box
- Ash Dischage cover
- Moveable cast iron grill
- Observing glass
- Control Board
- Filling Cover
- Ash Discharge
- Fan
- Filling/Discharge
- Heat exchange slices
- Safety outlet
- Safety Inlet
| MODEL - SERIES |
UKY/D3 |
25 |
40 |
60 |
80 |
100 |
| Fuel Type |
Wood - Coal - Biomass |
| Heat Output |
kw |
29 |
46 |
70 |
93 |
116 |
| kcal/h |
25.000 |
40.000 |
60.000 |
80.000 |
100.000 |
| Burning Chamber Height |
mm |
185 |
310 |
340 |
| Burning Chamber Width |
mm |
355 |
500 |
585 |
| Burning Chamberı Length |
mm |
500 |
510 |
660 |
850 |
| Burning Chamber Volume |
dm3 |
32,8 |
79,1 |
102,3 |
131,8 |
169,1 |
| Fuel Entry |
250x355 |
265x500 |
265x585 |
| Water Volume |
lt |
70 |
100 |
130 |
200 |
240 |
| Boiler Weight |
kg |
245 |
340 |
380 |
475 |
580 |
| Required Draft |
mbar |
0,25-0,28 |
0,28-0,30 |
0,30-0,34 |
0,32-0,35 |
0,34-0,37 |
| Min-Max Operating Pressure |
°C |
40-80 |
| Return Water Temperature |
°C |
40 |
| Maximum Operating Pressure |
bar |
3 |
| Test Pressure |
bar |
5 |
| Width (a) |
mm |
485 |
625 |
740 |
| Length (b) |
mm |
780 |
800 |
910 |
1120 |
1200 |
| Fan Collection Width (c) |
mm |
200 |
250 |
| Chimney Collection Height(d) |
mm |
1275 |
1435 |
1490 |
| Total Boiler Height (h) |
mm |
1320 |
1480 |
1565 |
| Exhaust (Flue) |
mm |
130 |
160 |
180 |
220 |
| Min-Max Flue Temperature |
°C |
170-210 |
| Boiler Inlet-Outlet |
R'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
| Expansion Tank Outlet-Inlet |
R'' |
1'' |
1 1/2'' |
| Filling - Discharge |
R'' |
1 1/2'' |
| Electrical Connection |
V/Hz |
230V - 50 Hz |
*The right to make changes in dimension is reserved.
