Котлы Серии UKY/Y-D2
Код продукта:
ÜKY/Y-D2 Serisi Kazanlar
|
MODEL-SERIES
|
ÜKY/YD-2
|
25
|
40
|
60
|
80
|
100
|
|
Fuel Type
|
Kömür
|
|
Power
|
kW
|
29
|
46
|
70
|
93
|
116
|
|
kcal/h
|
25.000
|
40.000
|
60.000
|
80.000
|
100.000
|
|
Fire Pot
|
mm
|
Ø295
|
345x345
|
400x400
|
|
Hopper Capacity
|
kg
|
120
|
150
|
190
|
|
Water Volume
|
lt
|
75
|
107
|
138
|
206
|
249
|
|
Boiler Weight
|
kg
|
330
|
420
|
450
|
580
|
670
|
|
Required Draft
|
mbar
|
0,25-0,28
|
0,31-0,33
|
0,33-0,35
|
0,35-0,40
|
|
Temperature Control Range
|
°C
|
40-80
|
|
Water Return (recommended)
|
°C
|
40
|
|
Max. Operating Pressure
|
bar
|
3
|
|
Test Pressure
|
bar
|
5
|
|

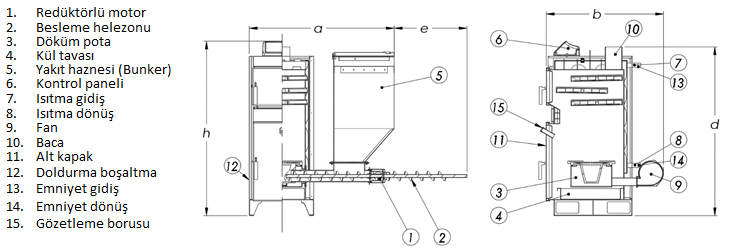

Ölçüler
|
Totoal Width (a)
|
mm
|
1100
|
1190
|
1275
|
|
Depth (b)
|
mm
|
880
|
880
|
1041
|
1260
|
|
Body Width (c)
|
mm
|
515
|
660
|
750
|
|
Flue Connection Height (d)
|
mm
|
1275
|
1452
|
1520
|
|
Auger Removal Distance (e)
|
mm
|
510
|
595
|
|
Boiler Total Height (h)
|
mm
|
1320
|
1465
|
1565
|
|
Flue Connection
|
mm
|
130
|
180
|
180
|
|
Min-Max Flue Temperature
|
°C
|
170-210
|
|
Boiler Flow/Return
|
R”
|
1”
|
|
1 ½”
|
2”
|
|
Safety Flow/Return
|
R”
|
1”
|
1 ½”
|
|
Filling/Draining Connection
|
R”
|
1/2”
|
3/4”
|
|
Electrical Connection
|
V/Hz
|
230V-50Hz
|
