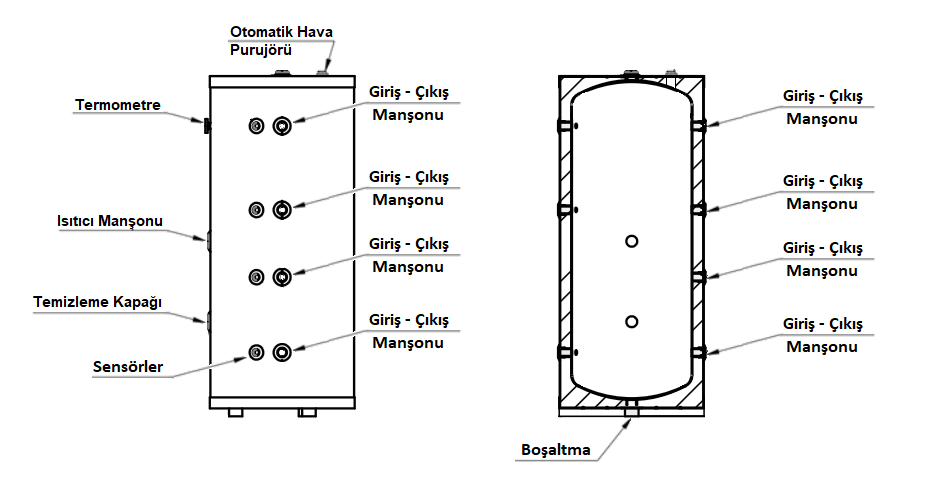

Buffer Tank Product Code: ÜBT ÜNMAK ÜBT series Buffer Tanks; It is used to store domestic hot water obtained by using central heating system, floor heating, geothermal and solar energy heating system, keeping heat loss to a minimum. Features Technicial Specifications Documents Buffer Tank ÜBT series, It is upright type. It takes up little space. It is long lasting. It is stylish and aesthetic with its modern design. It is highly efficient. It has a thermometer. It can be supported with a heater upon request. The operating pressure is 6 bar. It is insulated with polyurethane. It looks stylish with its zippered vinyl cover with sponge insert. TECHNICAL FEATURES PRODUCT TYPE ÜBT- 50 ÜBT- 100 ÜBT- 160 ÜBT- 200 ÜBT- 250 ÜBT- 300 ÜBT- 400 ÜBT- 500 ÜBT- 800 ÜBT- 1000 ÜBT- 1500 ÜBT- 2000 Rated Volume Lt 50 100 160 200 250 300 400 500 800 1.000 1.500 2.000 Real Volume Lt 56 98 162 198 238 294 390 493 791 990 1.487 1.868 Weight kg 30 51 69 77 85 101 130 154 226 260 391 447 Height mm 880 1072 1152 1302 1262 1542 1542 1790 1790 2080 1963 2363 Shell Diameter mm 427 490 590 590 647 647 750 750 980 980 1230 1230 Insulation mm 50 PU 50 PU 50 PU 50 PU 50 PU 50 PU 50 PU 50 PU 60 PU 60 PU 60 PU 60 PU Flow/Return Muff R” 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 2" 2" 2" 2" Number of Flow/Return Muff Piece 6 6 6 6 6 6 6 6 8 8 8 8 Sensor Connection Muff R” ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" Number of Sensor Connection Muff Piece 3 3 3 3 3 3 3 3 4 4 4 4 Circulation Muff R” 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 2" 2" 2" 2" Heater Muff R” 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 1 ½" 2" 2" 2" 2" Number of Heater Muff Piece 1 1 1 1 1 1 1 1 2 2 2 2 Drain Plug R” 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" 1 ¼" Thermostat Muff R” ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" ½" PU: Polyurethane We have the right to make changes to the dimensions. User Manual of Storage Tanks Hot Water Storage Tanks Catalog Hot Water Storage Tanks TSE Certificate Hot Water Storage Tanks CE Certificate (Pressure Equipment Directive) Hot Water Storage Tanks CE Certificate (Low Voltage Directive) Hot Water Storage Tank Conformity Declaration
